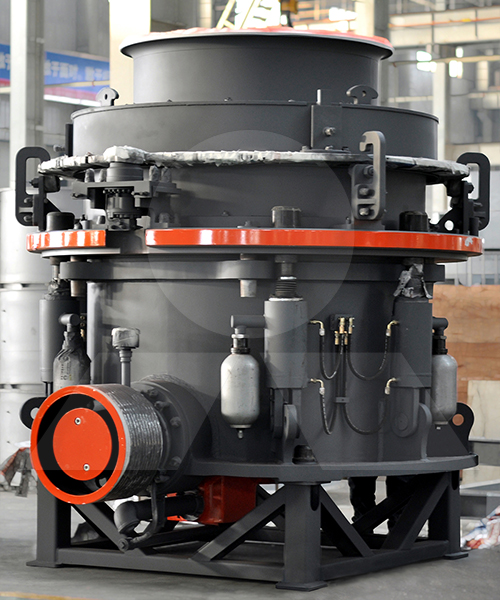

The cone crusher is a type of compression crusher that uses a rotating mantle to crush materials between the mantle and the stationary bowl liner. Here is a general overview of the system of the cone crusher:



Feed Hopper: The raw materials are fed into the cone crusher through a feed hopper.



Crushing Chamber: The crushing chamber, also known as the cavity, is where the material is crushed. It is made up of a mantle, which rotates eccentrically in the bowl-shaped concave, creating a compression crushing action.



Eccentric Assembly: The eccentric assembly consists of a main shaft, a pinion gear, a countershaft, and a bevel gear. The main shaft and pinion gear are driven by the motor, which rotates the eccentric assembly.



Bowl Liner: The bowl liner is the stationary component of the cone crusher. It is made of durable steel and is designed to protect the crushing chamber from wear and tear.



Adjustment Ring: The adjustment ring is used to control the gap between the mantle and the bowl liner. It can be raised or lowered to adjust the size of the crushed material.



Hydraulic System: The hydraulic system is used to adjust the gap between the mantle and the bowl liner. It also provides a way to clear any uncrushable material that may become stuck in the crushing chamber.



Drive System: The drive system includes the electric motor, the belts, and the pulleys. The motor drives the eccentric assembly, which in turn rotates the mantle and crushes the material.



Discharge Chute: The crushed material exits the cone crusher through a discharge chute and is conveyed to a vibrating screen or other processing equipment.



Overall, the cone crusher is a complex machine that requires precise engineering and design to function effectively.
