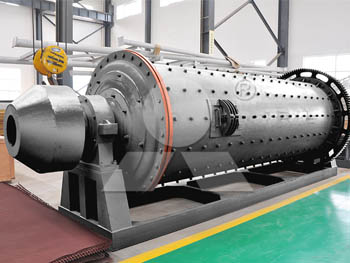

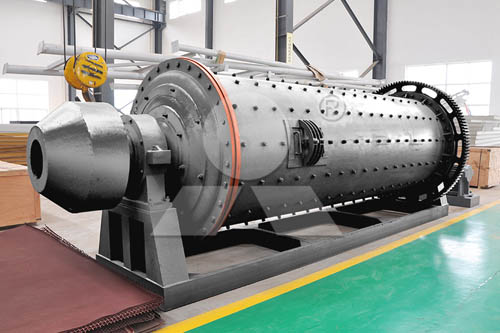

The ball mill can be divided into grid type and overflow type according to different ore discharge methods. This machine is a two-compartment grid type ball mill. When the machine is working, the material is spirally and evenly entered into the first chamber of the mill through the feeding hollow shaft by the feeding device. The chamber is equipped with a stepped liner or a corrugated liner and contains steel balls of different specifications. The rotation of the cylinder produces centrifugal force to push the steel balls After being brought to a certain height, it falls down, causing heavy impact and grinding on the material; after the material has been coarsely ground in the first warehouse, it enters the second warehouse through the single-layer partition board, which is lined with a flat liner and filled with steel balls, and the material is further crushed. Grinding; the powdery material is discharged through the discharge grate plate to complete the grinding operation.

Ball mill is the key equipment for crushing materials after they are crushed. It can be widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizers, ferrous and non-ferrous metal beneficiation, glass ceramics and other production industries. Dry or wet grinding with other grindable materials.
