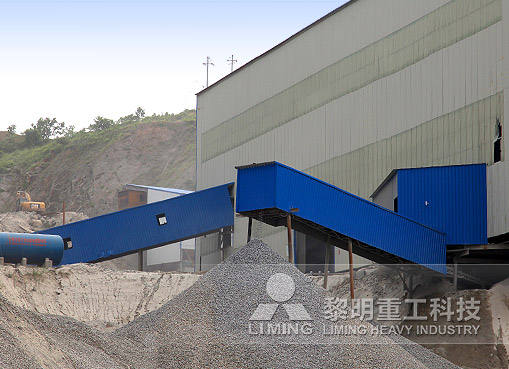

Diabase sand production line

Processing material: diabase

Production  capacity: 1000T/H

Feed particle size: ≤900mm

Discharge granularity: 0-5mm, 3-5mm, 5-10-24-36-38mm

Manufacturing processes:

The materials are conveyed to PE900×1200 jaw crusher and PE1200×1500 jaw crusher respectively by GZD1300×4900 vibrating feeder and GZD1500×6000 vibrating feeder for coarse crushing, and the coarsely crushed material is transferred through No. 1 underground The silo enters the HST315 single-cylinder hydraulic cone crusher for medium and fine crushing, and after screening by four 3YZS2675 circular vibrating screens, the material whose particle size is greater than 36mm and 38mm enters two HPT500 multi-cylinder hydraulic cone crushers through the No. 2 underground transfer silo. Medium and fine crushing, after the crushed material is screened by a vibrating screen, the 5-24mm material enters the 5X1145 sand making machine for shaping and screening, and then is screened by two 3YZS2675 circular vibrating screens. The final particle size of the finished sand and gravel is: 0-5mm, 3-5mm, 5-10-24-36-38mm.
